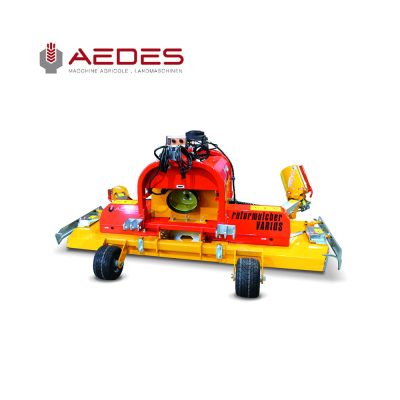

AEDES RMV Lawnmower
Standard equipment and key features:
Width adjustable lawnmower, compact, extra SHORT and robust, transmission through gearboxes with wires rotors “BioSystem” (or inter-row wheel) BILATERAL for mechanical/ecological weeding in “ORGANIC” or chards and vineyards.
- Extra short and robust construction, hydraulic width is adjustable for cutting the grass in the row and under the row, bilateral weeding in a single passage
- Minimized length, the machine is very short to facilitate row head maneuvers
- Transmission by gearboxes
- Rubber safety device for gearbox connection
- Gearbox with integrated free wheel – adjustment 540 RPM
- Inter-row arms with wires rotors AEDES “BioSystem”/ inter-row wheel BILATERAL with mechanical drawback by gas shock absorber
- Electrical oil cooler 12 V
- Rotors with special wires (PU 6 mm – reinforced)
- Transmission to the wires rotors by hydraulic motor
- Height-adjustable rollers at the front and broad roller at the rear (Ø 170 mm) for easy gliding and manoeuvrability
- Front rollers with adjustable track width
- Frame of three-point linkage category 1 and 2 – FIXED CENTRAL
- Third point with floating chain to allow the machine to perfectly follow the ground
- Cardan shaft with shear bolt
- Safety-protections and “CE” certification
For the operation of this machine, the tractor needs
- ONE socket 12 V – 3 pins
- TWO double acting hydraulic valves
- ONE single acting hydraulic valve (permanent oil 50 lt.) with free return
